Wire Assemblies

when you want it. how you want it.

ADVANCED MANUFACTURING

Fully automatic wire processing equipment

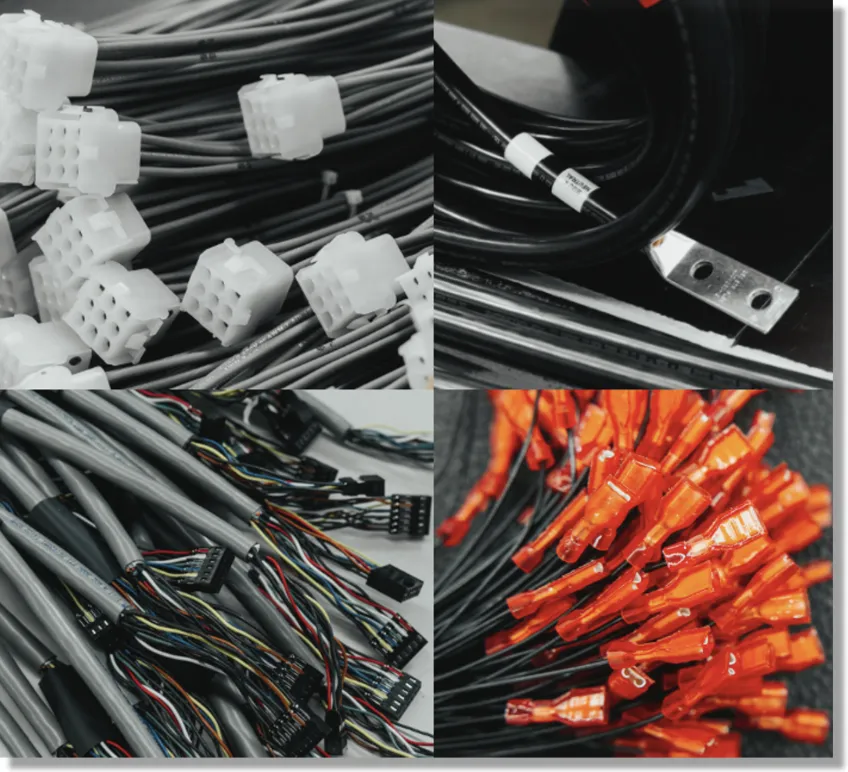

CAPABILITIES

Power Cables: 8ga – 350MCM
Power & Signal Harnesses: 10ga – 28ga
IDC – Ribbon Cables Assemblies
Coax Cable Assemblies
Complex Wire Harnesses
Wire Kits – Point to Point Installation
Wire Jumpers
High Volume
High & Low Mix

VALUE PROPOSITION

Automation Equipment – (2) Komax Omega, (2) Gamma 333, BT288, Automated Strippers, Labelers, Cable Tie Machines, Inkjets
Vast Tooling Library
VMI Programs with Suppliers – Short Lead Times
Parts On-Time, Great Quality, Impeccable Service at a Reasonable Cost.

The Process Map

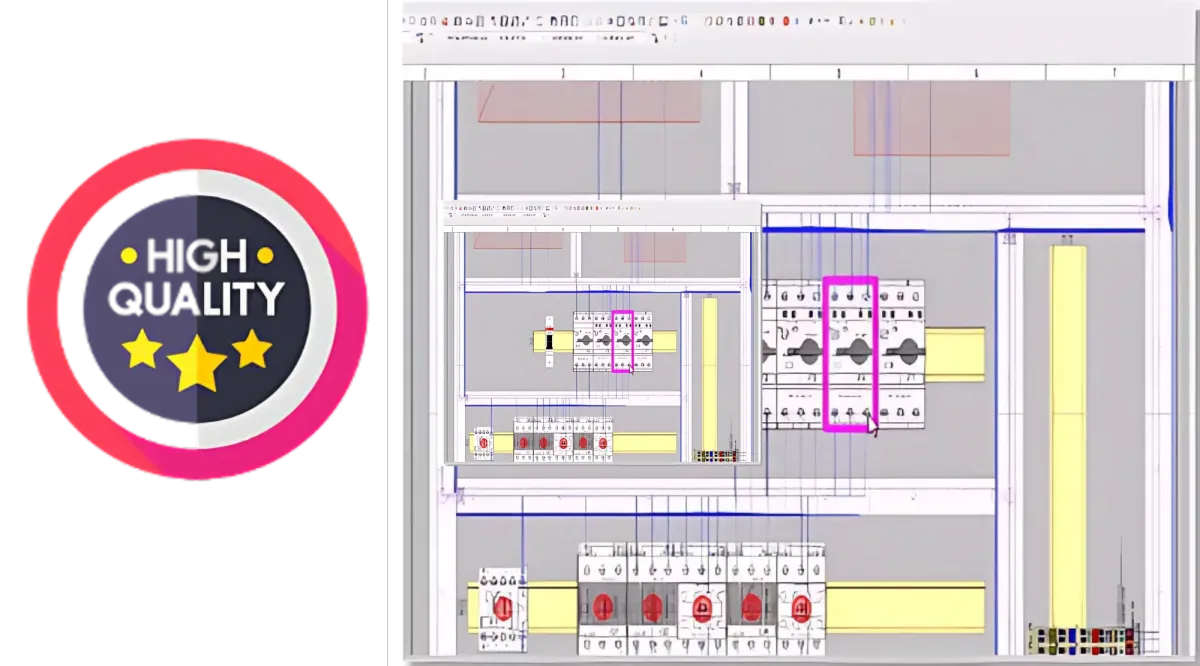

PANEL BUILDER

Use panel builder to map out the components you want to use in your panels. Panel builder will route the wires in the most efficient manner possible.

ZUKEN E3V FILES

Submit the wire files to ProSource and we will upload them directly to our machines. This allows easy communication of changes rather than hand measuring the lengths. And compiling BOM's.

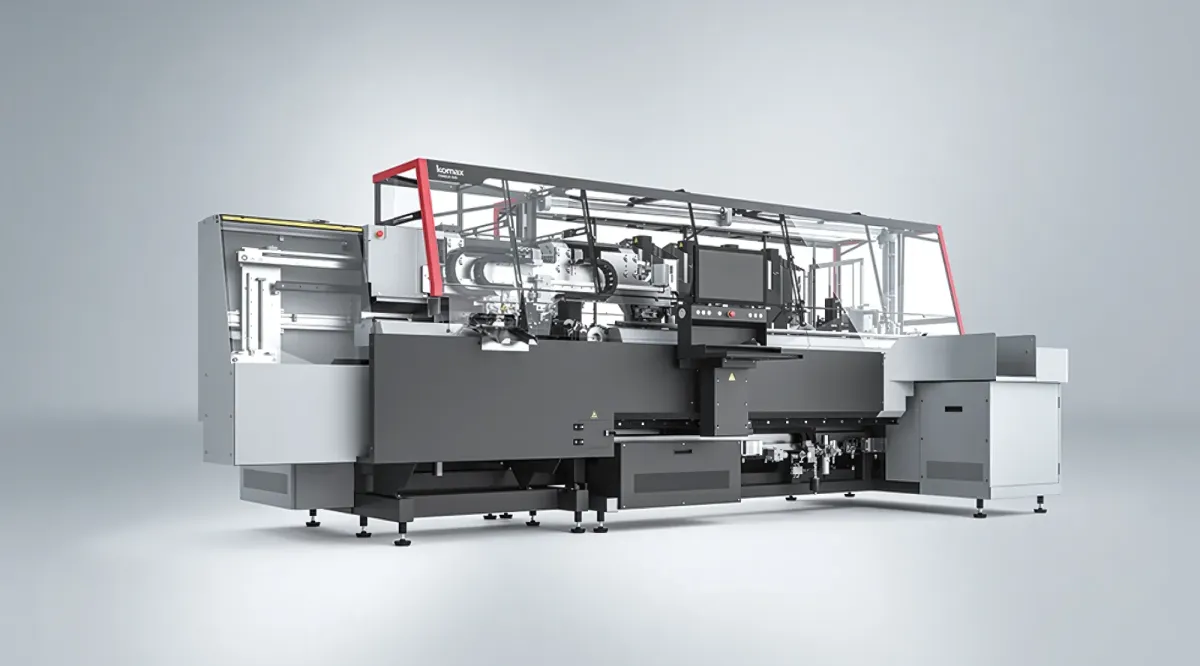

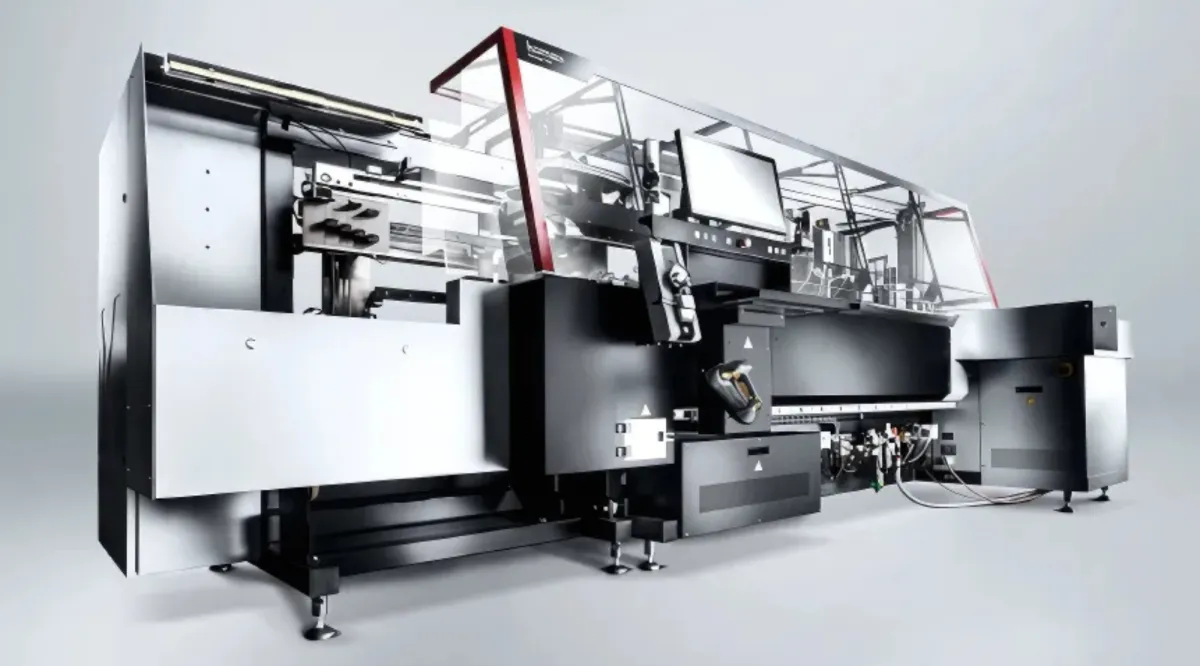

OMEGA 740 & 750

Uploads the e3v files with all the terminals wires and terminals. Including lengths and wire styles/gauges. These programs are saved and easy to recall.

OMEGA CAPABILITIES

Loads up to 36 wire per machine, cuts, strips and inkjets on the wire, terminates the ends and can plug wires into the connectors. As well as bundle at the end if sequence is important to you. Crimp force & blade continuity detections. As well as insertion and pull force parameters.
